Description

Cohesive element and surface Abaqus training package:

Cohesive behavior describes how one or multiple materials respond when their elements begin to separate. It simulates the material’s resistance to fracture by introducing a traction force (force per unit area) that opposes this separation. As the separation exceeds a critical limit, this traction decreases and eventually drops to zero—representing complete failure or fracture.

To better visualize this, imagine glue between two surfaces. As you pull them apart:

  1. The glue resists the separation (traction).
  2. The resistance increases until it reaches a maximum value (peak cohesive strength).
  3. It then gradually weakens until it can no longer hold the surfaces together (fracture).

Definition of the Cohesive behavior in simulation software

In simulation software, cohesive behavior is defined using a traction-separation law (TSL), which governs the relationship between traction (normal or shear stress across an interface) and the relative displacement between the two surfaces. A simple example of TSL is the linear softening law. In this model, traction increases linearly with displacement up to a peak value (maximum strength). Beyond this point, traction decreases linearly until it reaches zero at a critical separation. The area under the traction-separation curve represents the fracture energy. Other commonly used TSL variants include:

  • Bilinear
  • Trapezoidal
  • Exponential

Classical continuum mechanics assumes a homogeneous material and often fails to capture the initiation and growth of discrete cracks. In such cases, cohesive zone models (CZMs) offer a more accurate and physically meaningful way to simulate fracture phenomena such as delamination, debonding, and interfacial failure. Cohesive behavior is not a material property itself, but a modeling approach, especially useful when traditional stress-based failure criteria are inadequate.

Cohesive modeling is commonly applied in:

  • Polymers and adhesives (e.g., glue joints)
  • Composites (e.g., fiber-matrix debonding)
  • Concrete (e.g., aggregate-matrix separation, crack propagation)
  • Geological materials (e.g., rock fractures under loading)
  • Metals (e.g., grain boundary/interface separation)
  • Wood (e.g., inter-fiber failure)
  • Ceramics (e.g., thermal/mechanical cracking)
  • Biological tissues (e.g., tissue rupture, bone cracking)

Cohesive modeling in Abaqus

Abaqus is one of the most powerful software tools for simulating cohesive models accurately and robustly. There are two main approaches in Abaqus:

  • Element-based
  • Surface-based

Both methods are discussed in detail in this package. To enhance your understanding, we’ve also reviewed three practical workshops, and the corresponding Abaqus model files are included.

What topics are covered in this training?

In this package, tips will be given on how to choose the right adhesive element for the problem, how to apply these elements to engineering problems, define the basic geometry of the adhesive elements, and how to define the mechanical behavior of these elements in ABAQUS.

This training package comprehensively examines the cohesive element ABAQUS and cohesive surface Abaqus. The focus of this training package is on modeling by the traction-separation method. Two methods of element-based and surface-based modeling are used to simulate the adhesive, each of which has advantages and disadvantages. The theories used in this package include all adhesive behaviors, including the elastic zone, damage initiation, progressive damage, and element removal.  All equations, damage initiation criteria, and adhesive damage progression are also fully described in this package. In this training package, various examples for each of these methods have been used. Also, note that the use of a solver is effective in how to use these two methods. It should be noted that like other issues, if you use an implicit solver, sometimes there is a problem in convergence, and in this package, solutions to the divergence problem are also presented. Cohesive contact Abaqus in the interaction module and traction-separation law in Abaqus are also explained well in this course.

Lesson Overview

The lesson begins with a basic introduction to cohesive behavior and progresses to modeling strategies in Abaqus. Covered topics include:

  1. Applications of cohesive behavior
  2. Methods to simulate cohesive behavior

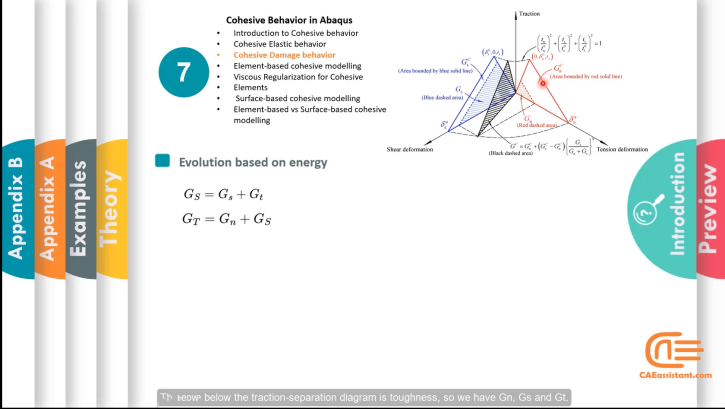

  3. Traction-separation laws, damage initiation, and progressive damage evolution
  4. Element-based vs surface-based methods for cohesive simulation
  5. Detailed comparison of the two methods

Workshops Overview

While the workshops simulate specific problems in Abaqus, they’re designed to equip you with transferable techniques. Topics covered include:

  1. Defining traction-separation behavior for cohesive elements
  2. Modeling procedures for the element-based approach
  3. Assembling cohesive parts and configuring modules
  4. Plotting damage initiation vs time for critical elements
  5. Addressing convergence issues in the implicit solver
  6. Simulating cohesive behavior between bricks and a masonry wall
  7. Defining Concrete Damage Plasticity (CDP) behavior
  8. Using mass scaling in Abaqus Explicit
  9. Output settings for cohesive surface behavior
  10. Defining surface-based cohesive behavior in the Explicit solver
  11. Defining surface-based cohesive behavior in the Implicit solver

This list represents only part of the content in this package. By now, you’ve likely realized how comprehensive and practical this training can be. The following sections provide further insight into cohesive behavior modeling in Abaqus.

It would be useful to see Abaqus Documentation to understand how it would be hard to start an Abaqus simulation without any Abaqus tutorial.

Abaqus tutorial     It will guide you going from the basics up to complex simulation techniques, and it is very fluid and comprehensive, and every single detail is explained.

Abaqus tutorial    Every lesson goes straight to the point, without any worthless piece of content. You will learn what you need at every stage, and you will be putting it into practice from the very first day.

In a word, being complete and having support in this course is the essential value of this course.

Abaqus tutorial        Most importantly, we support you as you learn in this course. You can contact our experts to ask your questions and enjoy our modelling and simulations step-by-step support for Abaqus software for civil engineering.

Abaqus tutorial        This is just the beginning for you. If you want to become a professional in Abaqus and simulation, you can use our advanced packages and become a professional in advanced Abacus coding.


Read More: abaqus fracture


Click on the chapters of each lesson on the right section of this tab to know the details of the tips and issues presented in this very comprehensive and useful  ABAQUS training package.

  • What do we learn from this package?
  • Teaching plan and Prerequisites and Next steps
  • Package specification

You can watch demo here.

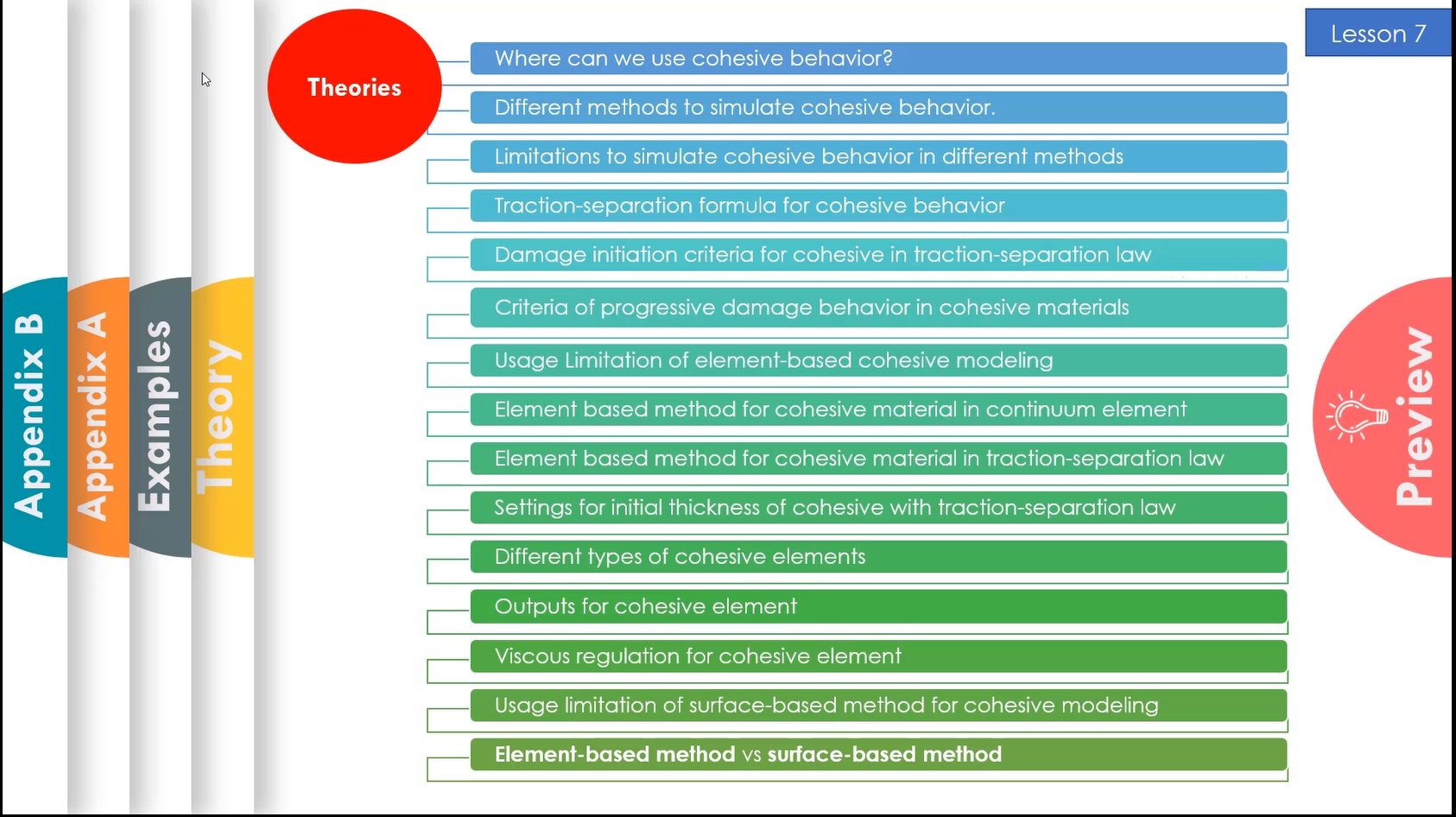

  • Where can we use cohesive behavior?
  • Different methods to simulate cohesive behavior.
  • Limitations to simulate cohesive behavior in different methods
  • Traction-separation formula for cohesive behavior
  • Damage initiation criteria for cohesive in traction-separation law
  • Criteria of progressive damage behavior in cohesive materials
  • Usage Limitation of element-based cohesive modeling
  • Element based method for cohesive material in continuum element
  • Element based method for cohesive material in traction-separation law
  • Settings for initial thickness of cohesive with traction-separation law
  • Different types of cohesive elements
  • Outputs for cohesive element
  • Viscous regulation for cohesive element
  • Usage limitation of surface-based method for cohesive modeling

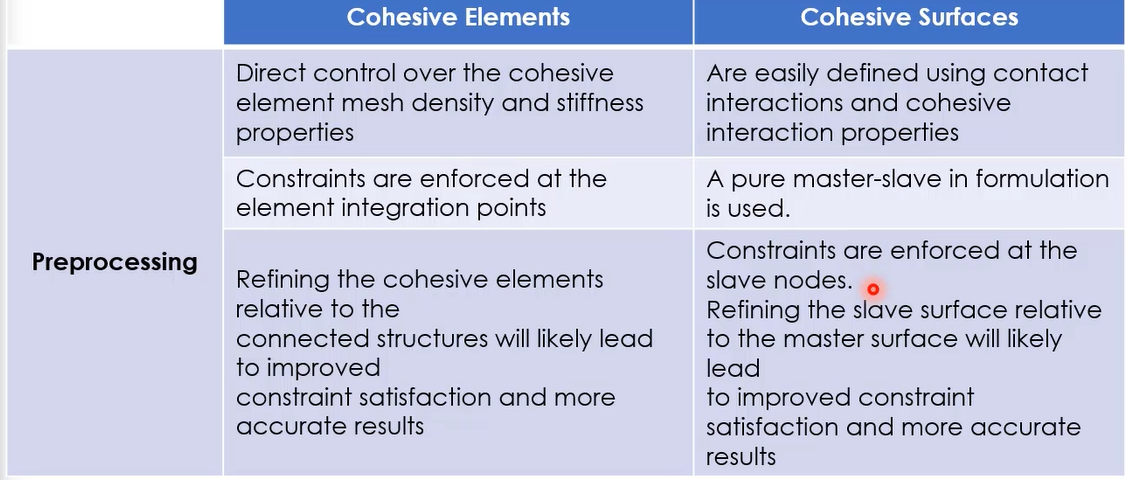

  • Element-based method vs surface-based method
  • Problem description

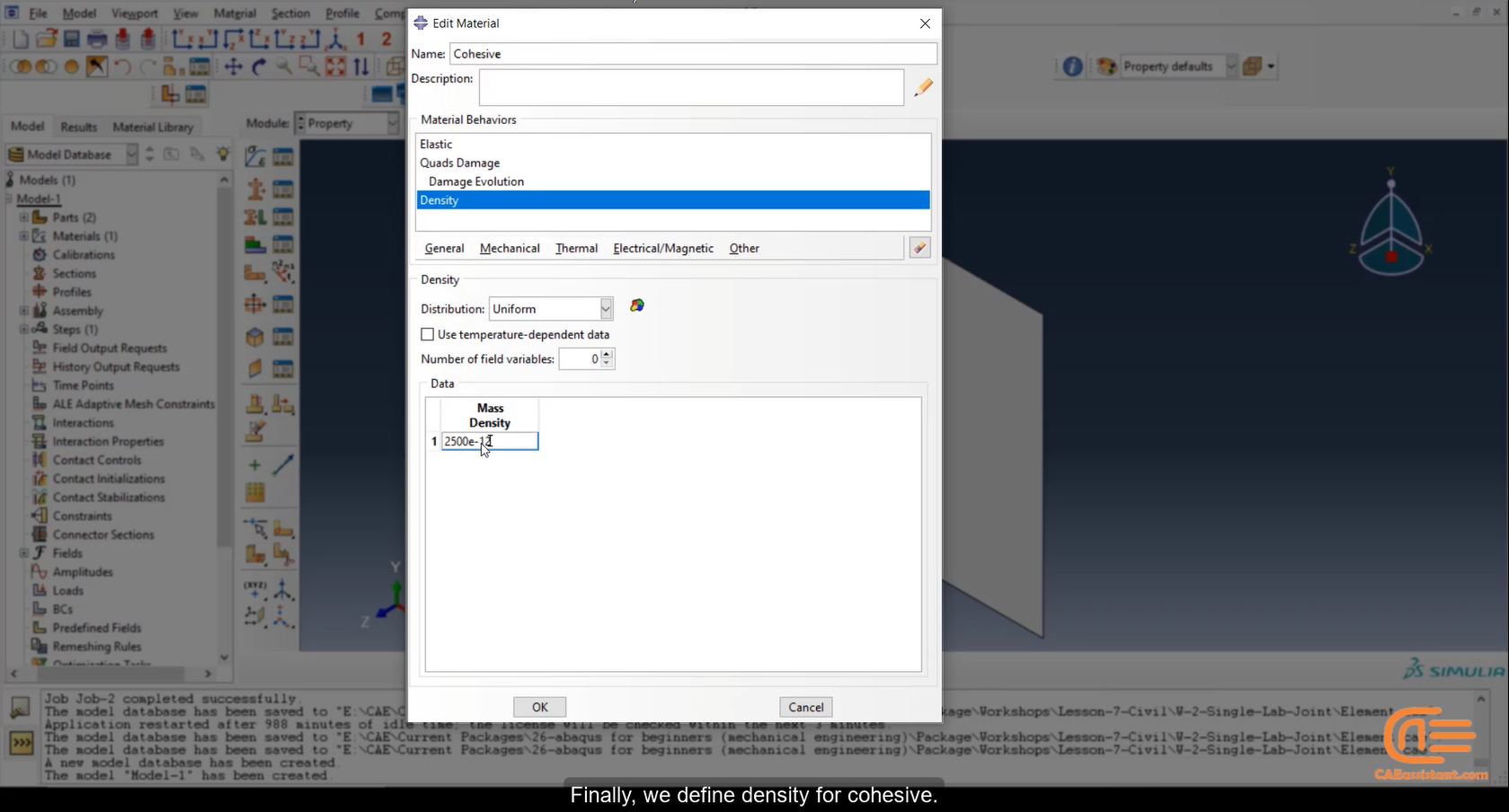

  • How to define traction-separation elastic behavior for cohesive elements
  • What is the procedure to model cohesive via element based method
  • How to define damage initiation based on QUADS damage
  • How to apply initial thickness settings

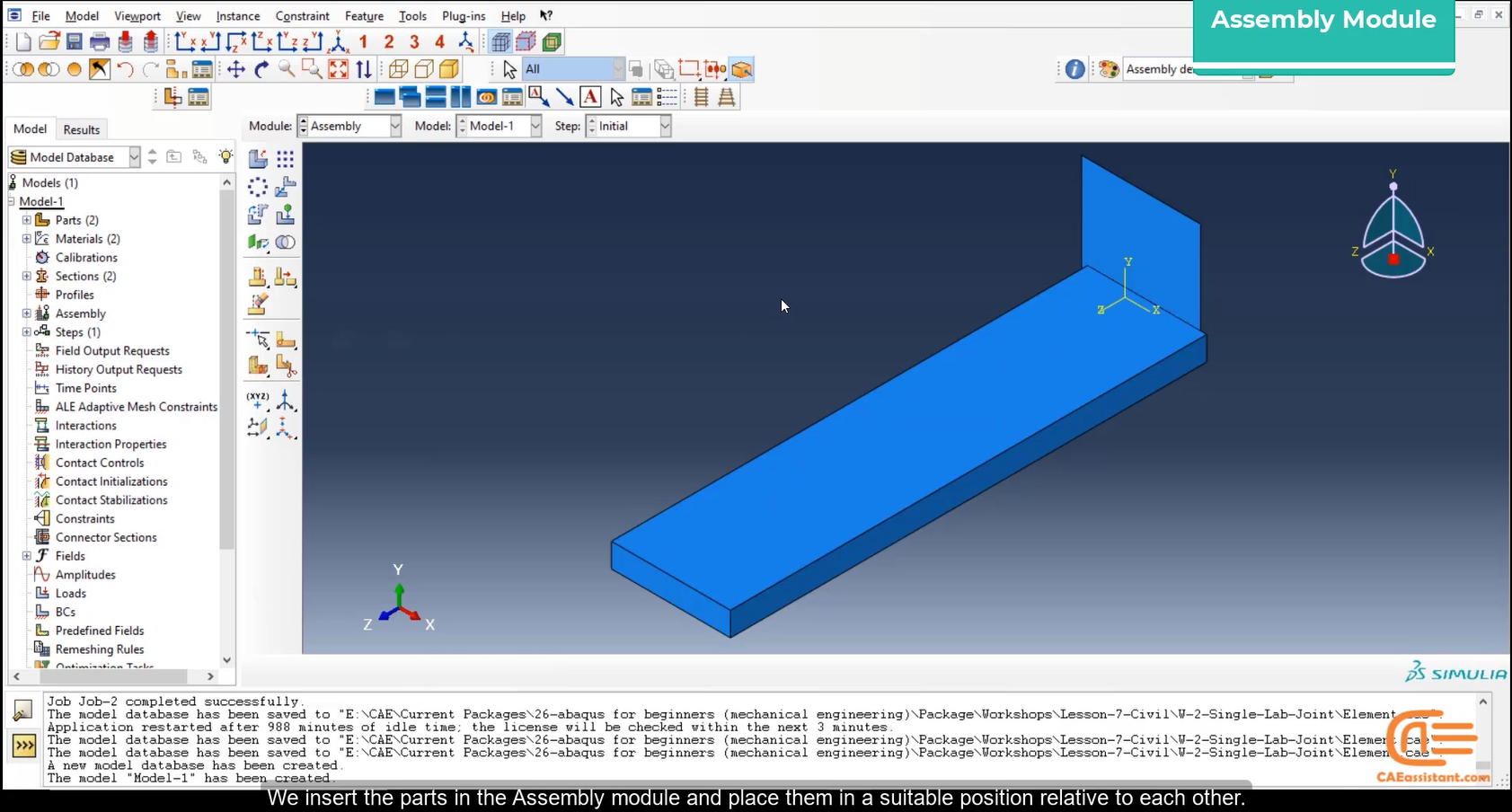

  • How to assemble cohesive parts and other parts
  • How to define outputs for cohesive elements
  • Settings in different module for cohesive behavior definition
  • Cohesive element settings in mesh module
  • How to see the result of damage initiation for cohesive materials

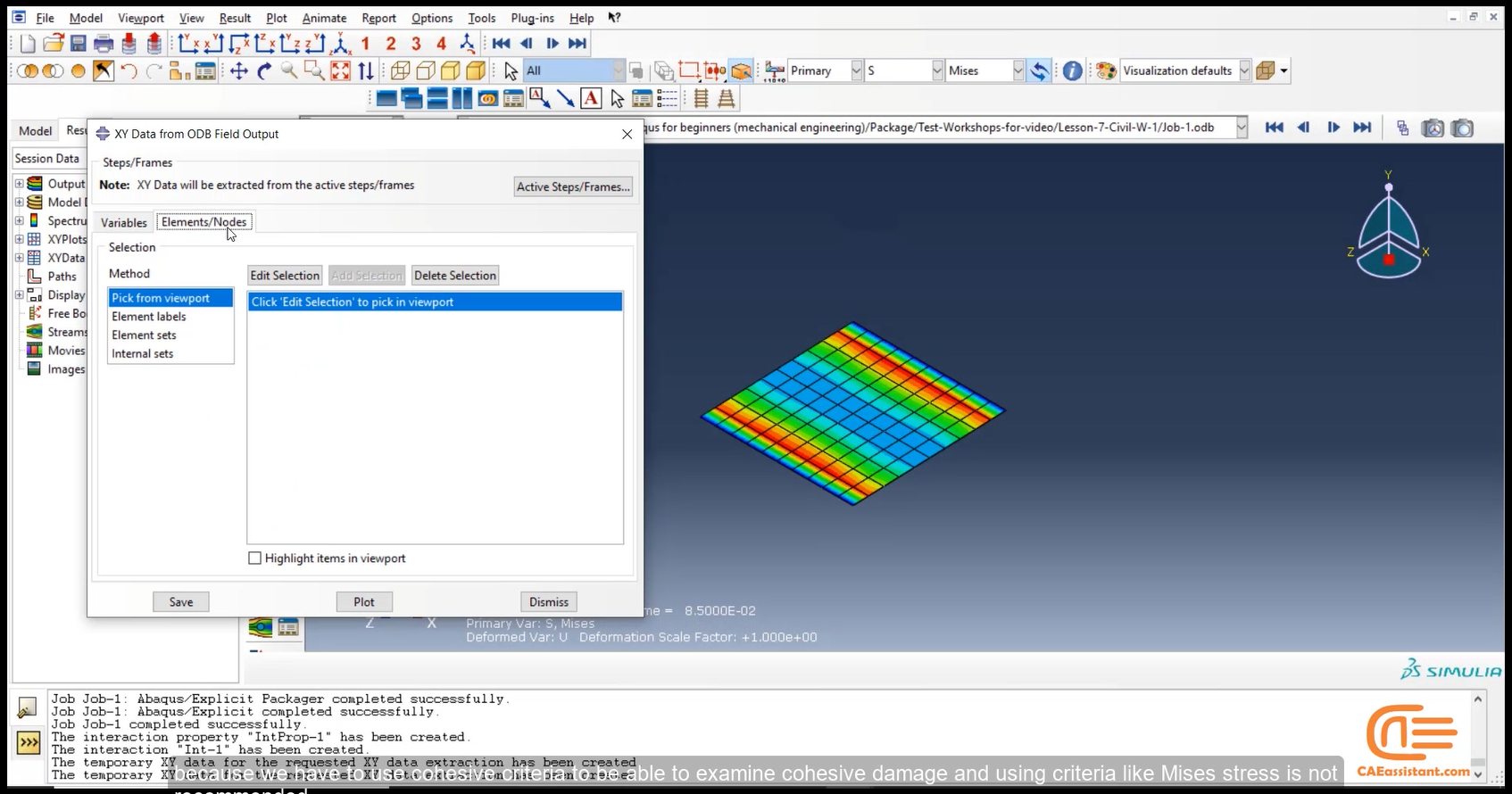

  • Plot damage initiation criterion vs time for critical element
  • Plot damage parameter vs time for critical element

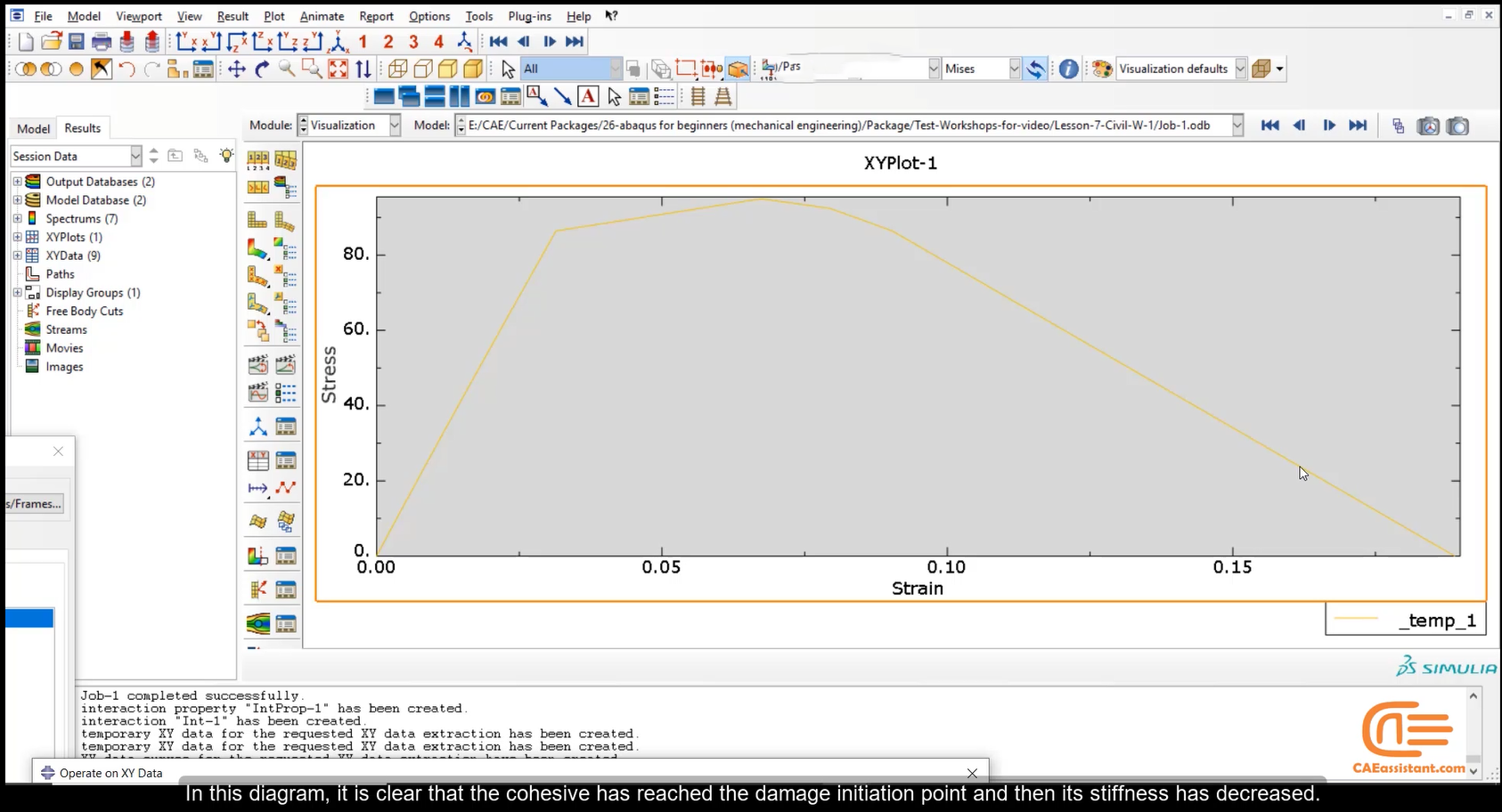

  • Plot stress vs strain for critical element
  • Problem Description
  • Settings to solve convergence problem in implicit solver
  • Settings to remove element in visualization module
  • Suitable method to simulate cohesive behavior between bricks and masonry wall
  • Suitable method to simulate cohesive behavior between bricks and masonry wall
  • How to define Concrete damage plasticity behavior(CDP)
  • Using mass scale to increase simulation speed
  • Output settings for cohesive surface behavior
  • Settings to define cohesive behavior via surface-based method in explicit solver
  • How to apply pressure when equivalent force in known
  • How to apply pressure when equivalent force in known
  • Problem description
  • Settings to define cohesive behavior via surface-based method in implicit solver
  • Plot force vs displacement in debonding of DCB(double cantilever beam)
  • How to model damage initiation and progressive damage for cohesive in surface-based method

Cohesive Simulation in Abaqus

ABAQUS software has an extensive library of adhesive elements for modelling the behaviour of adhesive joints, joint surfaces in composites, and other areas where integrity and strength of bonding are important. This training package fully discusses the cohesive element Abaqus, cohesive surface Abaqus and cohesive contact Abaqus and traction-separation law Abaqus.

Cohesive behavior can be simulated in Abaqus using two main approaches:

  • Element-based method: Requires defining a separate part for the adhesive layer.
  • Surface-based method: Does not require an extra part—only the definition of contact between two surfaces. It needs contact pairs for the Standard (implicit) solver, and general contact for the Explicit solver.

Unlike conventional materials, cohesive behavior is not defined via a stress-strain relation. Instead, you define traction stress as a function of separation—known as the traction-separation law. When the stress in the cohesive interface reaches a critical threshold (e.g., under tension or traction), delamination initiates, and the stress gradually reduces—this is known as softening behavior. To simulate this, a damage variable must be introduced after the elastic phase. Two main damage evaluation approaches exist in Abaqus, based on effective separation, and energy. These methods are explained in detail in the training package.

Two general categories of problems can be addressed using cohesive models: Adhesive problems, and delamination problems. In Adhesive problems, a bonding layer with finite thickness is defined. Accordingly, it requires specification of macroscopic strength and stiffness. In delamination problems, zero adhesive thickness is assumed. Accordingly, the behavior is defined purely via the traction-separation law. We have discussed them in detail in the package. Moreover, to demonstrate these approaches, the training includes three detailed workshops, discussed below.

Workshops

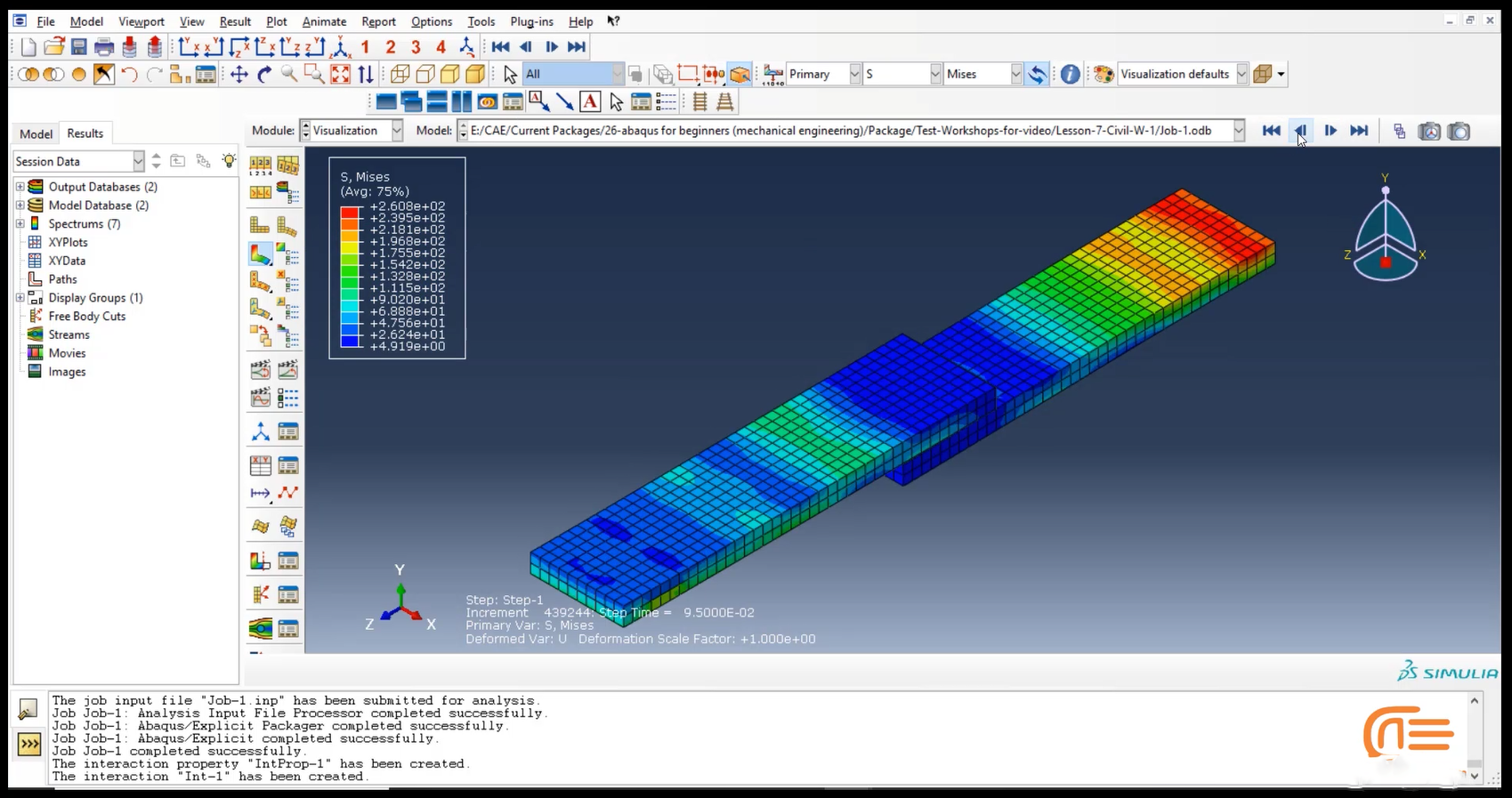

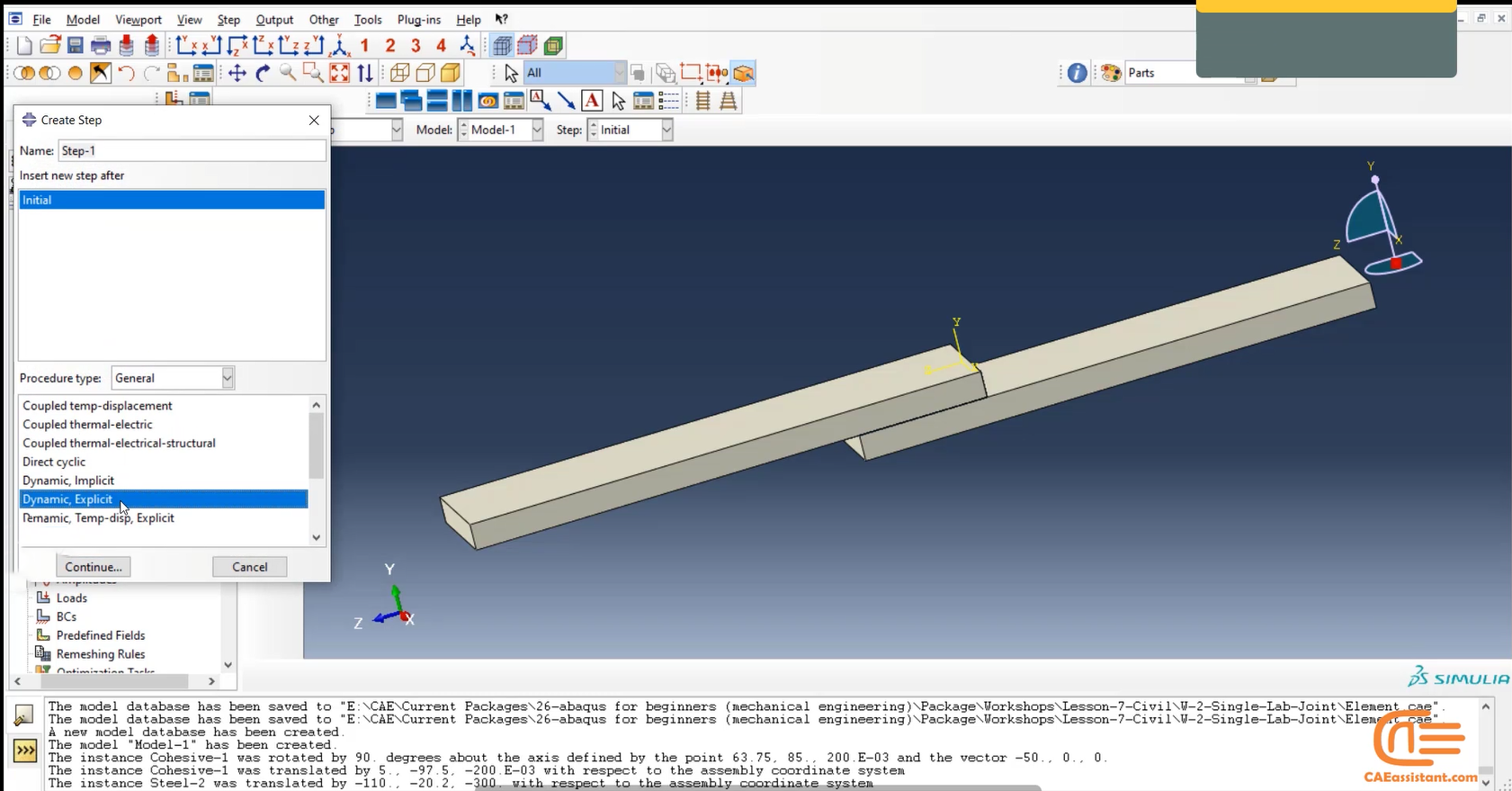

1. Simulation of a Single Lap Joint Under Tension

This workshop models two steel parts bonded together with an adhesive layer. A displacement is applied to one end while the other is fixed. The element-based method is used. The modeling procedure is explained step by step, and the results are extracted and analyzed.

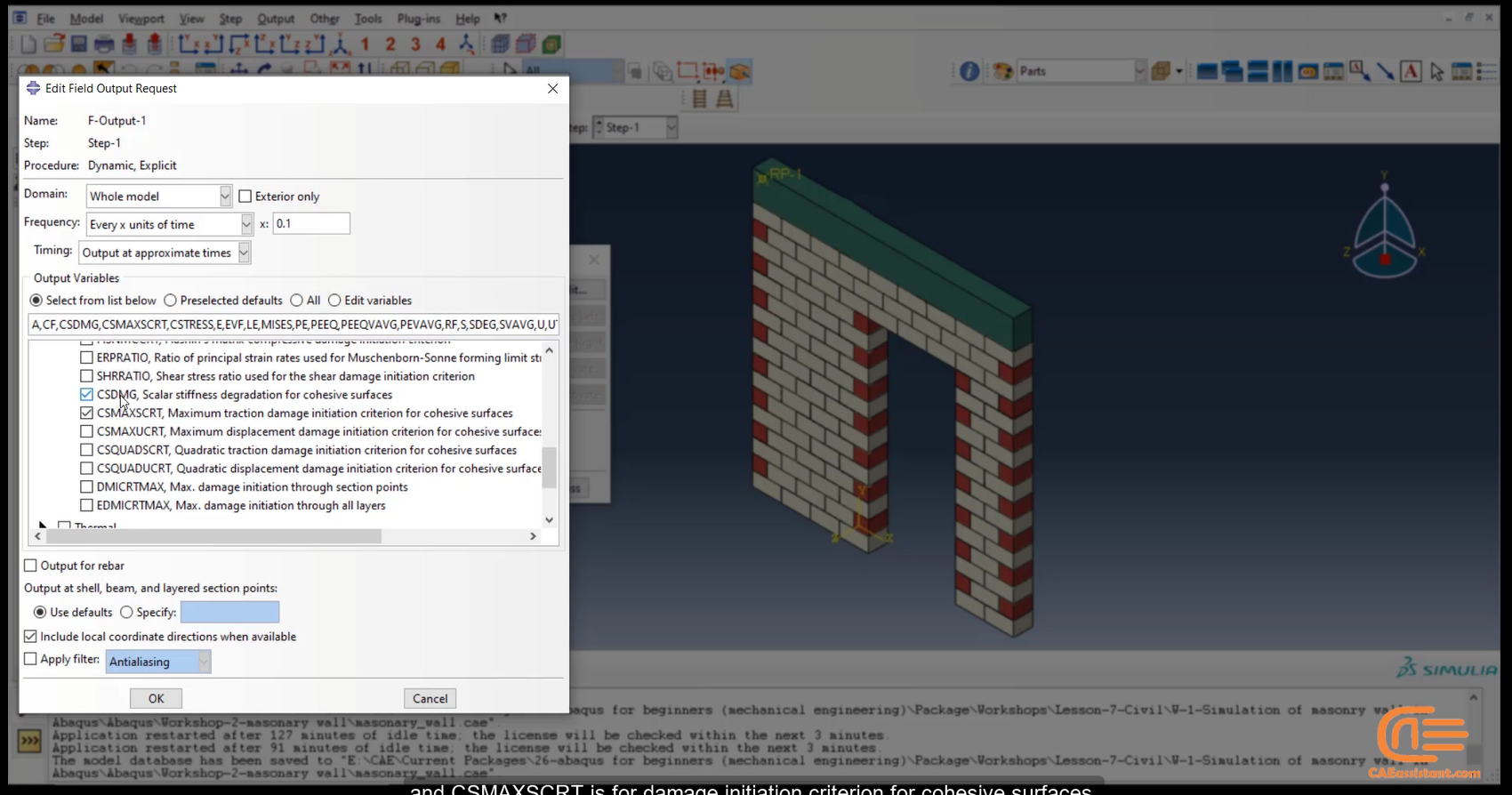

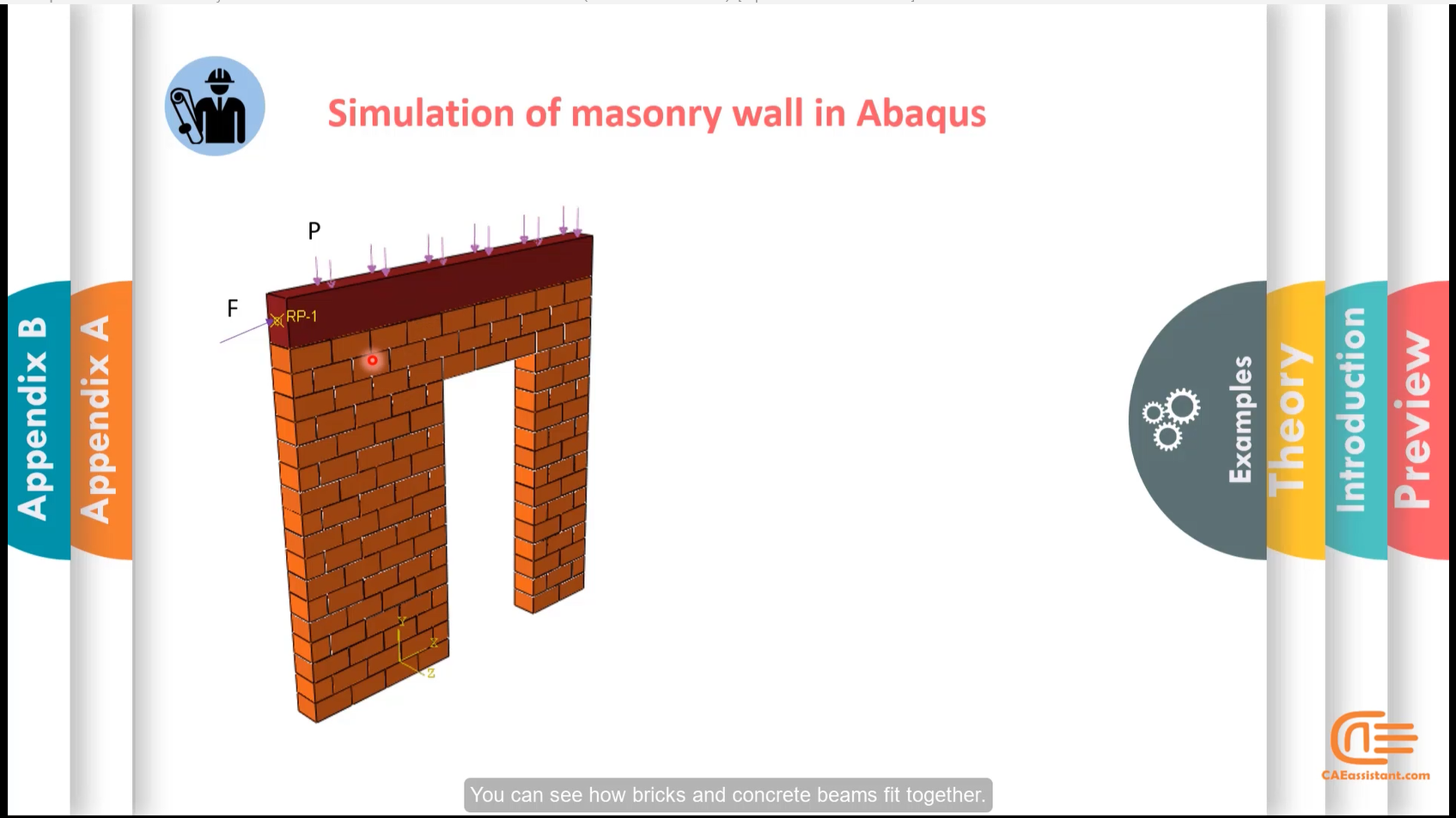

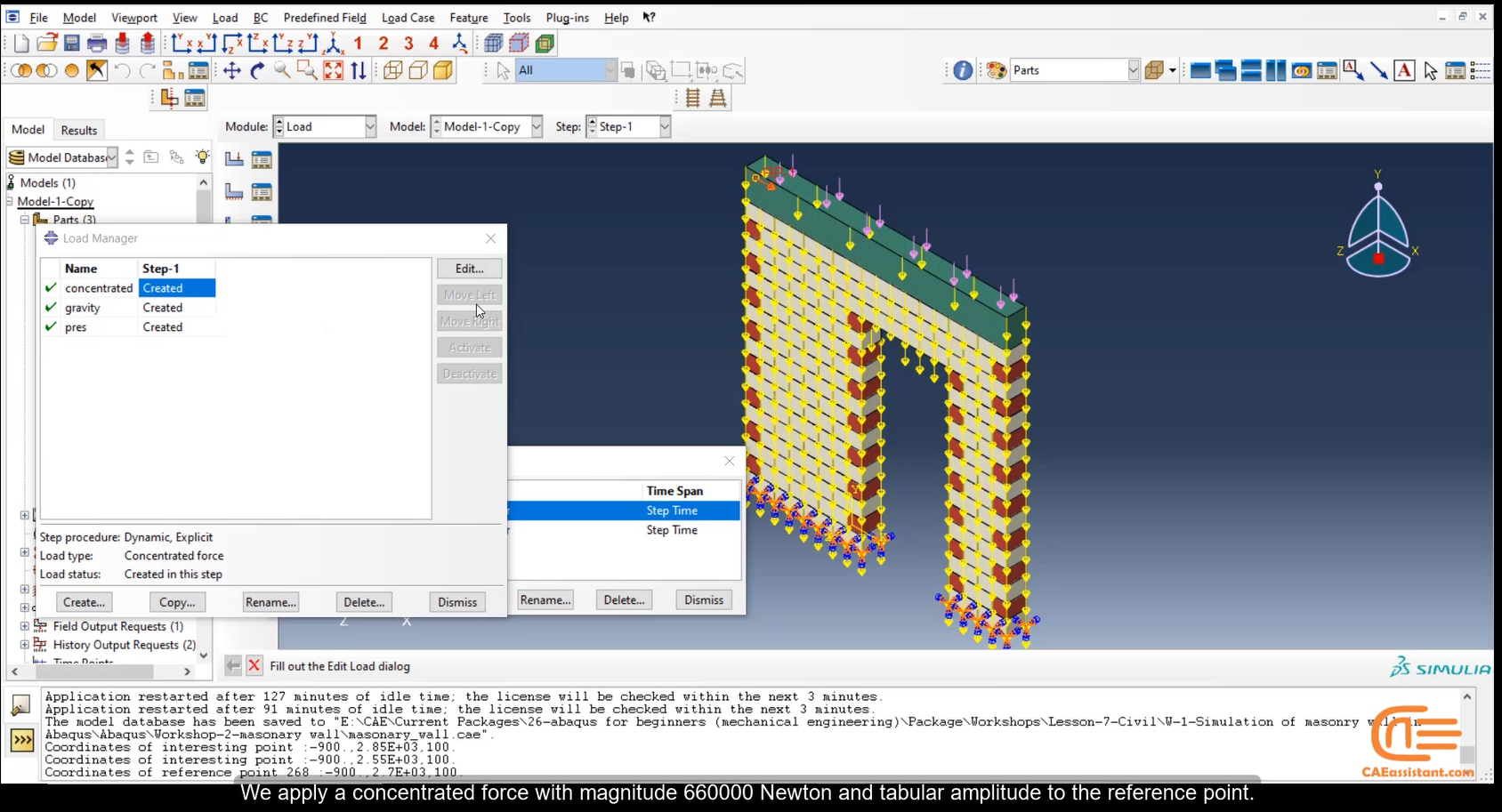

2. Masonry Wall Simulation

In this semi-realistic example, cohesive behavior is defined between bricks in a wall using the surface-based method, as the wall has many contact surfaces. This workshop has wide applications in civil engineering and architecture. The step-by-step modeling process in Abaqus is thoroughly discussed.

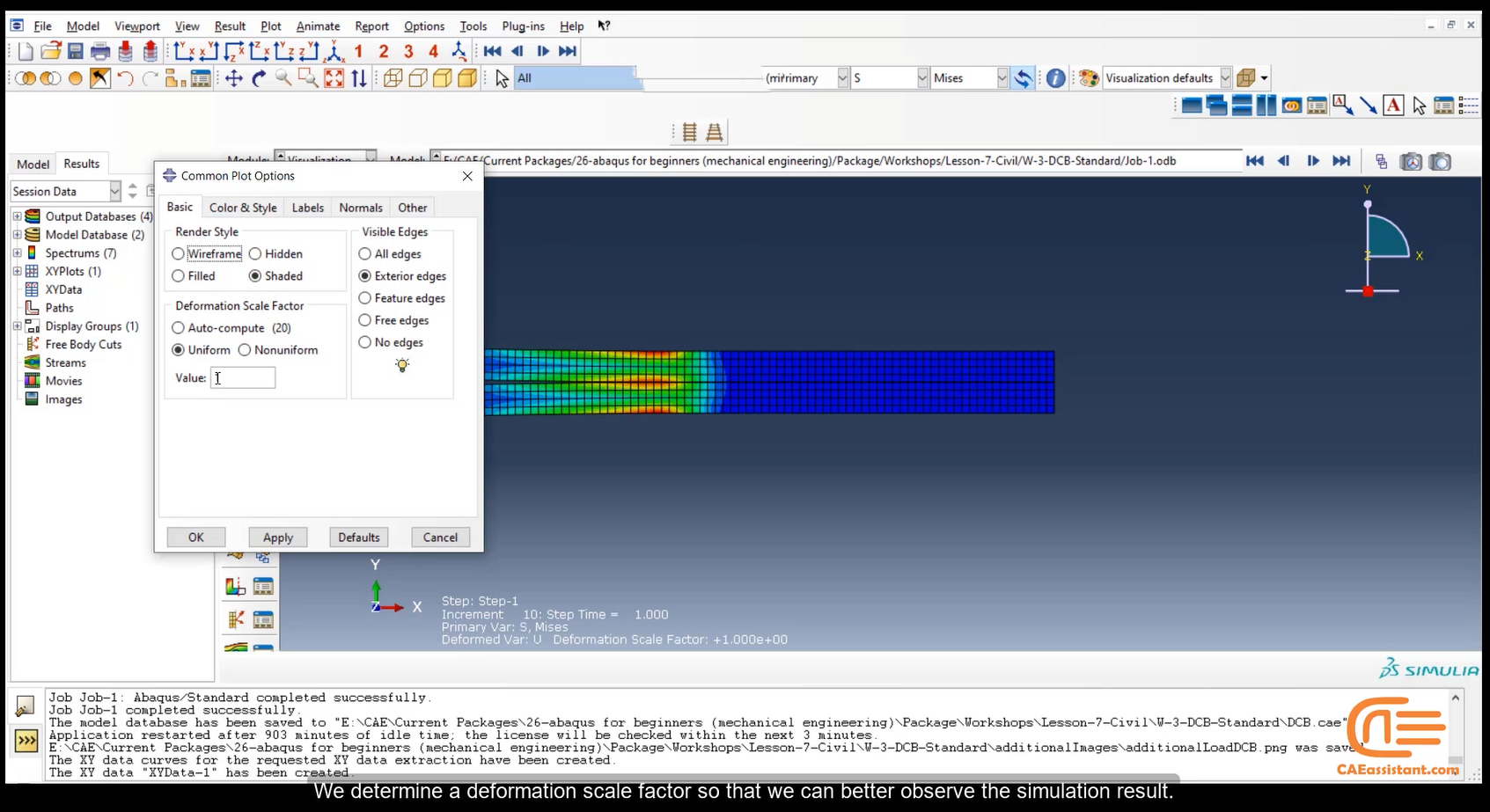

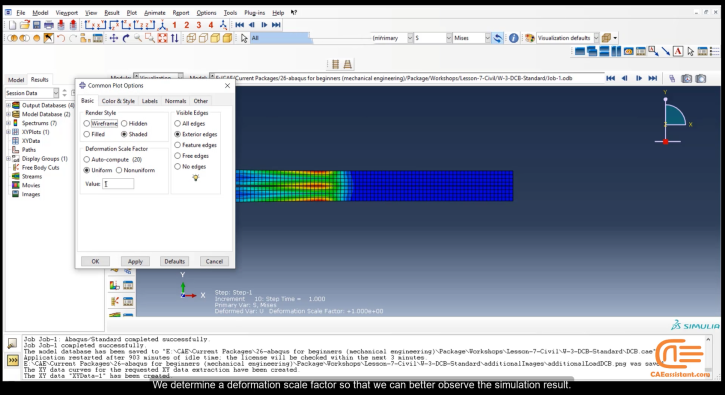

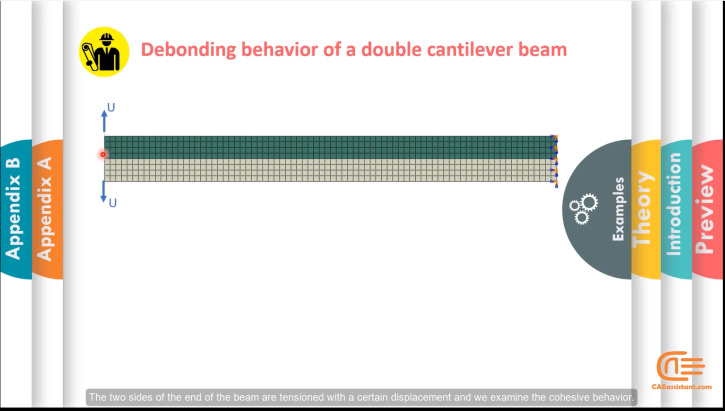

3. Debonding of a Double Cantilever Beam

This classical benchmark problem involves two sides of a beam bonded by cohesive layers. The surface-based method is used to simulate debonding. A displacement is applied to both ends to separate the two parts. This example offers valuable insights into cohesive modeling applicable across many scenarios.

Users ask these questions

In social media, users ask questions regarding cohesive simulation in Abaqus; cohesive element, CZM, etc. So, we decided to help and answered some of them, which you can see below.

I. 3D and 2D cohesive zone models

Q: Dear all,
Regarding the similarity of the 2D and 3D cohesive zone models, I have a tiny question. In ABAQUS, I created a 2D square geometry with a central cohesive element. I’m attempting to evaluate my load-displacement response using a 3D model with identical geometry and an appropriate out-of-plane thickness. The outcomes, nevertheless, are very different. The same holds true for a model lacking a cohesive zone. Would someone kindly assist me in solving this problem?
The attached model geometry will help you understand.

cohesive element abaqus

Figure 1: 2D model of cohesive zone

cohesive element abaqus

Figure 2: 3D model of cohesive zone

A: Hi,

Please recheck your model; you might have done something wrong in modeling. Moreover, you can convert plane strain analysis from 3D to 2D when the third dimension is way greater than the other two dimensions.

Also, you can learn how to do a proper cohesive simulation with this tutorial package:

Implementation of Cohesive by interaction & element based methods in ABAQUS
